Kumpulan Edaran Otomobil M.T.H (M) Sdn. Bhd.

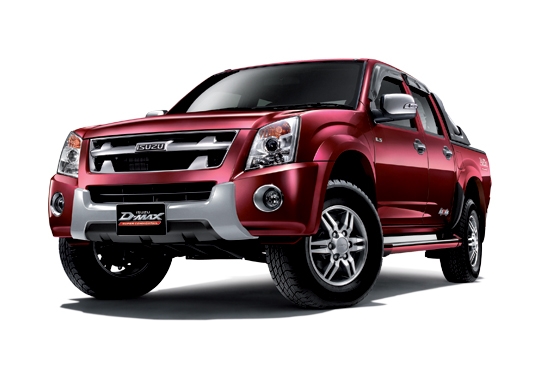

Isuzu D-Max Double Cab 3.0 Litre
i-TEQ

The sparkling new platinum-look engine cover
goes a long way to keeping the engine clean
and in mint condition.




The D-MAX has the shortest front overhang
which contributes greatly to stunning on-road
and off-road agility and handling.

Timing Gear & Chain

Compared to the
ordinary timing belt, the timing gear & chain is definitely longer lasting. It keeps the motion going without the possibility of snapping.

Alloy Pistons

These hard-wearing
pistons are made from a special heat durable material - Isuzu's High Performance Alloy. With the Thermal Flow Cooling channels, the pistons won't expand under extreme heat conditions and won't come in contact with the walls of the engine. A unique feature in the D-MAX.

Melt-in Liner

What makes this liner special is the High Frequency Induction Hardening (HFIH) - a special process that melts the cylinder block liners to the block. This 'double-padded' built-in protection keeps the cylinder walls in pristine condition for longer.

2-Storey Water Jacket

A double storey passage
for a better water flow to
cool the engine faster.
Less chance of overheating
on long

Specifications
ENGINE 3.0LS Ddi iTEQ Super Commonrail 4x4 Manual Transmission 3.0LS Ddi iTEQ Super Commonrail 4x4 Auto Transmission
Model 4JJ1-TC
Type In-line 4-Cylinder Turbo Intercooler Diesel DOHC 16V
Displacement (cc) 2,999
Bore & Stroke (mm) 95.4 x 104.9
Compression Ratio 17.5:1
Maximum Output (kW (PS) @ rpm) [ISO NET] 100 (136) @ 3400
Maximum Torque (Nm (kgm) @ rpm) [ISO NET] 280 (28.6) @ 1200 - 3400 294 (30.0) @ 1400 - 3000
Fuel System Direct Injection Electronic Commonrail
TRANSMISSION
Type 5-Speed Manual 4-Speed Automatic
with Grade Logic Control
Gear Ratio 1st 4.008 2.785
  2nd 2.301 1.545
  3rd 1.427 1.000
  4th 1.000 0.694
  5th 0.745 -
  Reverse 3.651 2.272
  Final 4.300 4.300
SUSPENSION & BRAKES
Suspension Front Independent Double Wishbones with Torsion Bar Springs & Stabilizer
  Rear Semi-Elliptical Leaf Springs
  Shock Absorber All Wheel Double Action Telescopic Gas
Brakes Front Ventilated Disc with 2-Pot Calipers
  Rear Leading-and-Trailing Drums
STEERING
Steering System Rack & Pinion Power Steering System
Min. Turning Radius (m) 6.2
TYRES & WHEELS
Tyres 245/70R16
Wheels 16 x 7JJ Alloy
WEIGHT & CAPACITIES
Gross Vehicle Weight (kg) 2750
Seating Capacity 5 persons
Fuel Tank Capacity (L) 76
EXTERIOR FEATURES
Headlamps PROJECTOR Ellipsoid System
Fog lamps Built-in
Door Outer Mirror Chrome with Integrated Turn Signal
Door & Tailgate Handles Chrome
Rear Bumper Step Type Chrome
INTERIOR FEATURES
Meter Panel e-LUMAX
Audio System Built-in 2-DIN AM/FM MP3 WMA Player with 4-Speakers & 2-Tweeters
Seats Raschel Fabric with Front Bucket support
Door Windows & Mirrors Electric-Control
Middle Console Box 2-Tier Double Compartment
SAFETY FEATURES
SRS Airbag (DUAL) Equipped
ABS with EBD Equipped with G-Sensor
Body Construction Reinforced Cabin with Front & Rear Safety Crushable Zones
Side Door Impact Beams All Doors
Collapsible Steering Column Equipped
Limited Slip Differential (LSD) Equipped
Wheel Stopper Equipped
Windscreen Front Laminated & Rear with Defogger
Wiper Intermittent with Variable Delay
Seat Belts 3-Point ELR for all occupants
Vehicle Security System Anti-Theft Alarm System with Key-coded Immobilizer
Child Protector Safety Lock Equipped
LED High Mount Stop Lamp (3rd Brake Light) Equipped
