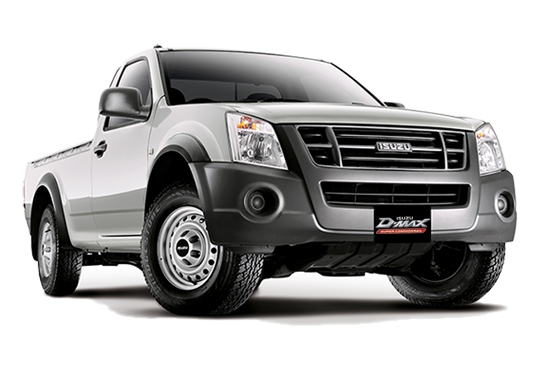

Isuzu D-Max Single Cab 3.0 Litre
When you absolutely need to get the loads there, the Isuzu D-Max 3.0L is well up to the task. Its superior 3-litre power and torque coupled to Isuzu’s famed Touch-on-the-Fly transmission selector allows you to handle all kinds of adverse terrain with ease. Its low load height also means less strain when loading or unloading goods. When it comes to the business of delivering, there can be no other.

*Images shown are for illustration purposes only. Please contact your nearest Isuzu showroom for further details.

i-TEQ
We're durable
Isuzu’s heritage in diesel engine technology means we know what it takes to get the job done. Down-time is a definite no-no in our language and here are some of the secrets that help us to achieve our strong durability and reliability:
"...At the end of the day, you want a reliable car for all your journeys."
Mr. Foo Say How
Businessman & Off-road Enthusiast
Kota Bharu, Kelantan
Melt-in Liner
Melt-in Liner
Through a special process called High Frequency Induction Hardening (HFIH), the cylinder liners are fused to the block. This ‘double padded’ built-in protection keeps the cylinder walls in optimal condition much longer.
Timing Gear & Chain
Timing Gear & Chain
Unlike ordinary rubber-based timing belts that can snap unexpectedly, the D-Max timing gear and chain is made of durable hardened steel/alloy/metal for extended trouble-free driving. And the best part is its maintenance-free for life too!! Gone away the timing-belt replacement costs.
Alloy Pistons
Alloy Pistons
D-Max pistons are made of Isuzu’s High Performance Alloy, with Thermal Flow Cooling channels that will not expand despite intense heat. This prevents the pistons from causing friction between the walls of the engine, thereby preserving the condition of the engine longer.

Roller Rocker
Roller Rocker
Roller rockers maintain a constant contact between the camshafts and the valve guides thereby reducing friction and noise.
Fuel Cooler
Fuel Cooler
This reduces the temperature of fuel resulting in better fuel atomization.
Oil Cooler
Oil Cooler
Specially developed to cool the lubricants thus extending their operating life and maintaining the viscosity levels to keep it effective.

2-Storey Water Jackets
2-Storey Water Jackets
Doubles the flow of coolant through the engine keeping the temperatures at a manageable level and lessening the chance of overheating even under the most arduous of conditions.
Exhaust Gas Recirculation (EGR)
Exhaust Gas Recirculation (EGR)
Electronically-controlled large-volume EGR and intake throttle valves ensure that fuel is optimally burned before being discharged into the atmosphere.
Fuel Monitoring System
Fuel Monitoring System
This system detects the levels of impurities trapped in the diesel filter and the indicator lamp will light up when the filter is ready to be serviced. Even water particles are filtered which are harmful to diesel engines.

Specifications
ENGINE 3.0L Ddi i-TEQ Super Commonrail 4 x 4 Manual Transmission
Model 4JJ1-TC
Type In-line 4-Cylinder Turbo Intercooler Diesel DOHC 16V
Displacement (cc) 2,999
Bore & Stroke (mm) 95.4 x 104.9
Compression Ratio 17.5:1
Maximum Output (kW (PS) @ rpm) [ISO NET] 100 (136) @ 3400
Maximum Torque (Nm (kgm) @ rpm) [ISO NET] 280 (28.6) @ 1200 - 3400
Fuel System Direct Injection Electronic Commonrail
TRANSMISSION
Type 5-Speed Manual
Gear Ratio 1st 4.008
  2nd 2.301
  3rd 1.427
  4th 1.000
  5th 0.745
  Reverse 3.651
  Final 4.100
SUSPENSION & BRAKES
Suspension Front Independent Double Wishbones with Torsion Bar Springs & Stabilizer
  Rear Semi-Elliptical Leaf Springs
  Shock Absorber All Hydraulic Double Action Telescopic Gas
Brakes Front Ventilated Disc with 2-Pot Calipers
  Rear Leading-and-Trailing Drums
STEERING
Steering System Rack & Pinion Power Steering System
Min. Turning Radius (m) 6.2
TYRES & WHEELS
Tyres 225/75R16C
Wheels 16 x 6.5JJ Steel
WEIGHT & CAPACITIES
Gross Vehicle Weight (kg) 2750
Fuel Tank Capacity (L) 76
EXTERIOR FEATURES
Headlamps -
Fog lamps Not Equipped
Door Outer Mirror Black
Door & Tailgate Handles Black
INTERIOR FEATURES
Seats PVC
SAFETY FEATURES
Body Construction Reinforced Cabin with Front & Rear Safety Crushable Zones
Side Door Impact Beams Equipped
Collapsible Steering Column Equipped
Limited Slip Differential (LSD) Equipped
Wheel Stopper Equipped
Windscreen Front Laminated & Rear Tempered
Seat Belts Adjustable 3-Point ELR & 2-Point for Middle Occupant
